- 产品品牌：瑞德威RADWAG
- 产品型号：XP82/220R

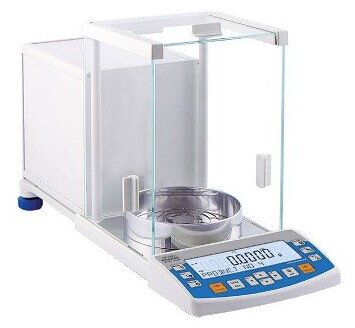

- 产品名称：瑞德威RADWAG XP82/220R 十万分之一 双量程专业分析天平
OVERVIEW
- New menu structure
- Databases
- Communication interfaces
- Programmable buttons
The XP R series represents a new standard level for analytical balances. It features a new, legible LCD display which allows a clearer presentation of the weighing result. The display has a new text information line allowing to show additional messages and data, e.g. product name, operator name or tare value, etc. A real novelty of XP R series are pictograms signalling current operating mode, connection with a computer, the battery charge, service or balance functions.
Mass measurement may be performed either in one of 17 predefined units or in 2 units freely defined by a user. The balance precision and the measurement accuracy for both, net weight and gross weight, is assured by automatic internal adjustment. The XP.R series balance is equipped with an open work weighing pan thus resulting in elimination of air influence on the measurement.
XP R series balance features several communication interfaces: RS 232, type A USB, type B USB and optional WiFi.
A completely new menu structure has been designed for XP.R series balance. The menu allows to register data in the following databases:
- users (up to 10 users),
- products (up to 1000 products),
- weighments (up to 5000 weighments),
- tares (up to 100 tares),
- ALIBI memory (up to 100 000 weighments).
There is two-direction data exchange within the system thanks to a quick USB interface. New balances allow to import and export databases using USB pen drives.The balance comprises 2 buttons enabling easy access to DataBase and Functions. Additionally it is equipped with 4 programmable function keys F1-F4. The function keys can perform different operations for each mode:
- header printout,
- tare editing,
- footer printout,
- product selection.
欧洲瑞德威分析天平主要特点：
■ 超强抗干扰功能：优化天平抗外界干扰性能，确保称量结果始终准确
■ 键盘直接设有Database、Function快捷键及F1-F4可编程功能键等，方便操作
■ 超大醒目的背光显示屏及象形图符，使所有信息清晰直观一目了然
■ 自定义信息系统：
用户-10个
产品-1000个
称重-1000组数据
去皮-10次
ALIBI内存-100000组
■ 自定义打印输出，三个可配置部分的用户自定义报告打印输出
■ 支持多国语言显示及PCL打印协议
■ 通过WIFI及USB可直接将测量数据传输至软件进行管理
■ ALIBI安全内存数据库：100000组，并保证了数据存贮的安全性及长久性
■ 多种数据交换：标配 2个RS232、2个USB 和 WIFI（选购）
欧洲瑞德威分析天平技术参数:
技术参数：
XP82/220R
最大秤量
82g / 220 g
可读性
0.01mg / 0.1mg
重复性
0.02mg / 0.08mg
线性
0.06mg / 0.2mg
秤盘尺寸
￠85 mm
Minimum weight (acc.to USP)
40 mg
Minimum weight (U=1%, k = 2)
4 mg
稳定时间
5 s
Sensitivity offset
2×10-6×Rt-6
Sensitivity temperature drift
1×10-6/°C×Rt
Sensitivity stability
1×10-6/Year×Rt
Sensitivity drift
1ppm/°C in temperature +15 ° ～ +35 °C
Atmospheric humidity*
40 - 80%
称重室尺寸
170×200×220 mm
校准方式
全自动内校（时间、温度触发）
显示器
LCD （背光）
接口
2个RS232，USB-A, USB-B, WiFi （选购）
